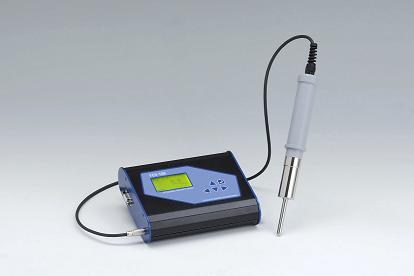

Desktop Viscosity Meter
Advantages
- [Compact design] Sensor weight is 300g
- [No moving part] Sensor cleaning is trouble less
- [Easy maintenance] No periodical calibration is required
- [Easy operation] Measurement is not depended on sensor position
- [Flexible viscosity reading adjustment] Adjust with your current viscosity reading
- [Digital measurement & output] It eliminates a human error on measurement
- [Easy data storing] Paper less data storing
- [Dual measurement] Both viscosity & temperature measurements at the same time

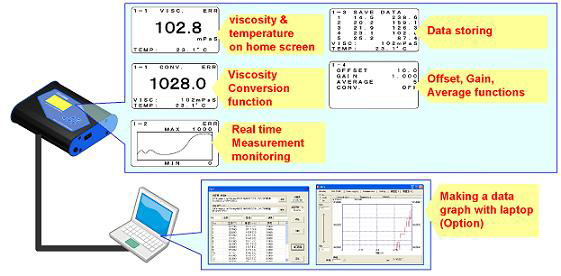

Product Overview
Specifications
| Name | FCV-100 |
| Principle | Ultrasonic torsion mode vibration |
| Meas. range | 0-100mPa.s / 0-1,000mPa.s / 0-10,000mPa.s |
| Accuracy | ±1%FS (under stable condition) |
| Temp | Range : 10-40 degree C |
| Output | RS232C |
| Power | AC100-240V (accessory adapter plug : A type) |
| Cable length | 1.5m |
| Sensor material | SUS316 |
| Accessories | Instruction manual, AC adapter, Software package for RS232C communication |
| Optional accessories | RS232C cable, Carrying case, Clamp holder
|
Applications
Adhesive, Daily product, Starch, Coating material, Oil, Cosmetics, Ink, Latex, etc

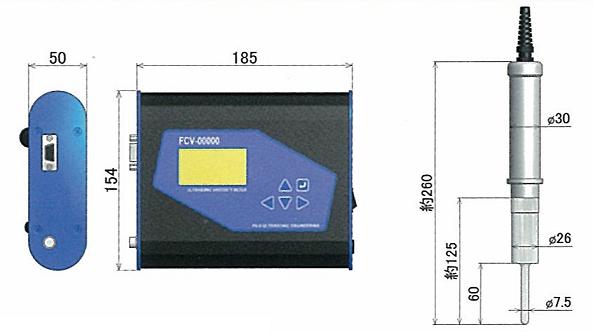

Dimensions
Video Instruction
Preparation
Operation
Performance
[Brochure] FCV-100 (889KB)
