Binary Model (Flange type)

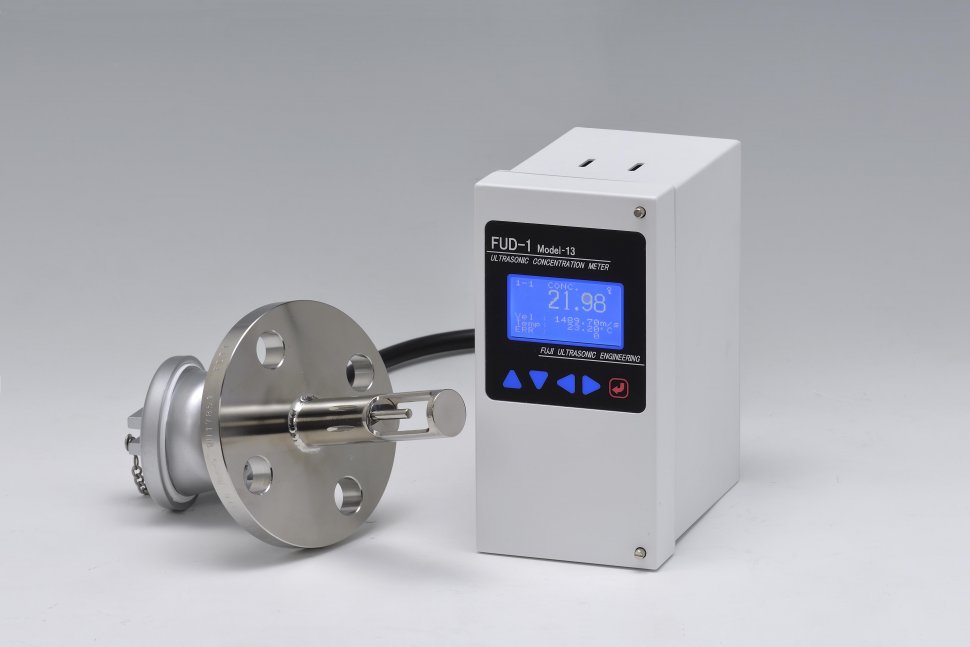

FUD-1 Model-13／FUD-1 Model-23(Explosion proof model)

The binary model is available for a single solute in solution (one component in solvent) with ultrasonic propagation velocity principle.

[Brochure] FUD-1 Model-13/23（1.5MB）

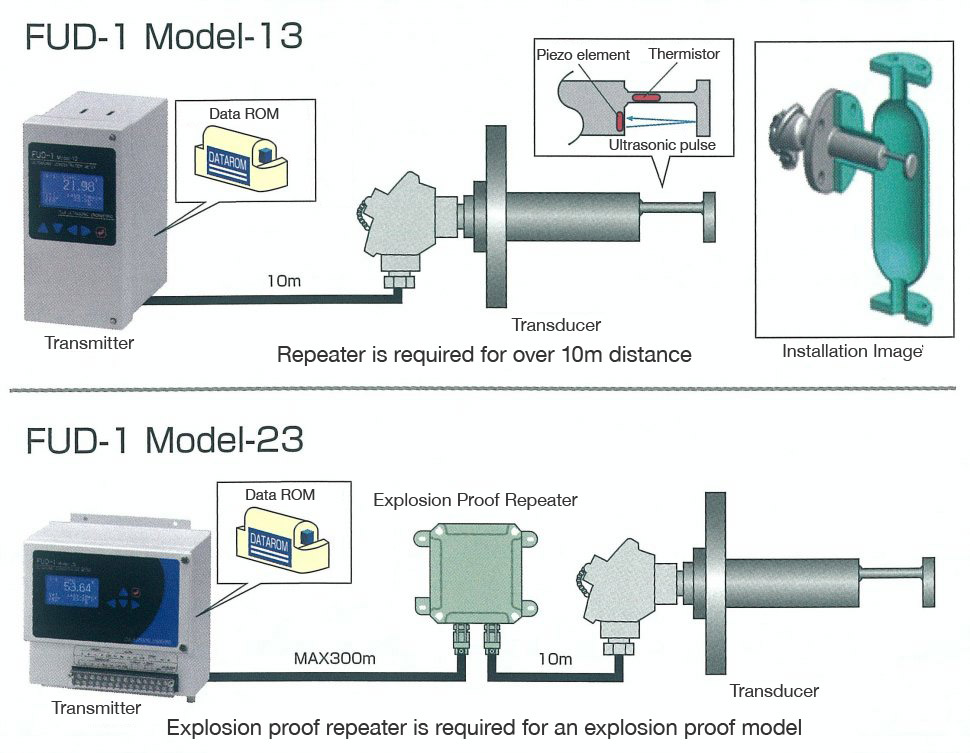

System Configuration

Example

Advantage

● Ultrasonic velocity method	? Available for variety applications [acid/alkali/organic fluids]
● No moving part design	? No need for periodical parts replacement & calibration
● Variety sensor material	? Metals & resins according to chemical corrosion
● Easy installation	? No position limitation & calibration at installation
● Useful functions	? Easy system integration for process control in real time

Applications

NaOH, HCl, NaClO, etc. in Caustic soda plant
H2SO4, NH4OH, HNO3, etc in Chemical manuf. plant
Coolant oil, Oil remover in steel plate plant
Sugar, Source in food & beverage plant
Cleaner, solvent in etching process

Specifications

Name		FUD-1 Model-13/FUD-1 Model-23 (Explosion Proof Type)
Measurement parameters		Ultrasonic velocity and temperature
Display		LCD (concentration, temperature, velocity/various parameters)
Outputs		Analog / DC4 - 20mA (adjustable for conc. value) Digital / RS232C (concentration, temperature, velocity, error code) Alarm / high, low, error
Power		AC100 - 240V 50/60Hz, 30VA
Transmitter		Panel mount type (DIN Standard), Rack type, Rack type with a Rain-Proof Case
Environment		Temp.0 – 50 degree C, RH less than 85% (No dew condensation)
Temp. of liquid		0 – 100 degree C, -10 – 160 degree C (100 degree C span) [Option]
Function		Output setting, Alarm-output setting, Average times setting,Offset and Gain setting, Self-diagnosis-check,Fail Safe Mode, Auto Error Canceller Mode
Option		RS485 Output (Alternative choice with RS232C.) Temp. Output (DC4 - 20mA)
Channel		max. 10ch.
Cable		10m (normal), Max. 300m (A Repeater is required for more than 10m.)
Explosion Proof Type	Repeater	Ex 2 BT4
	Transducer	Ex 2 CT4
Meterials of Transducer		SUS316（L）, SUS304（L）, Teflon coated, Hasteroy, Titanium, Nickel, Tantalium, PFA, PTFE, PVC, PVDF, etc.
