High grade models


      単成分濃度計（高精度）

      FUD-1 Model-130 / FUD-1 Model-530

The high-grade models can provide tighter & more stable concentration measurement






              PDF
              [Brochure] FUD-1 SEMI selection (1.5MB)              お問い合わせ

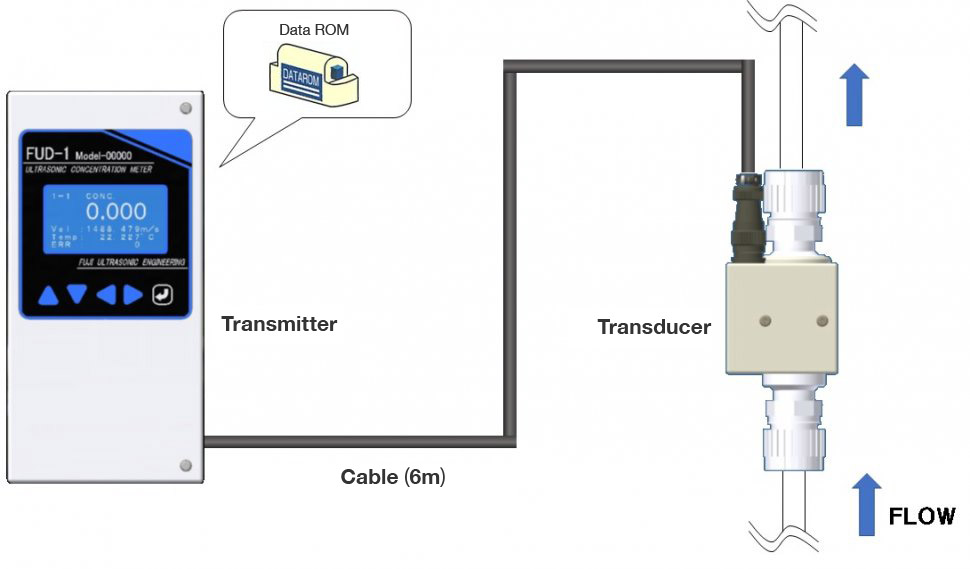

System Configuration

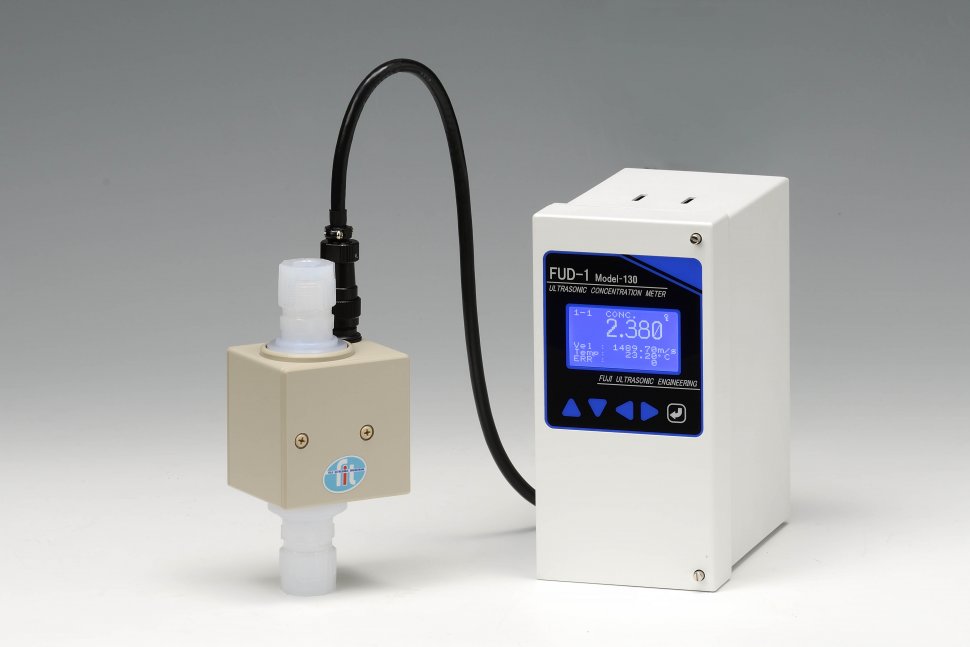

FUD-1　Model-130
単成分濃度計（高精度）



Advantages
 ● Ultrasonic velocity method ? Real time measurement with tight accuracy
 ● No moving part design ? No need for periodical parts replacement & calibration
 ● Compact PFA flow cell ? No corrosion for the chemical
 ● Easy installation ? No calibration at installation
 ● Useful functions
 ? Easy system integration for process control in real time





Applications
  • H2O2 concentration monitoring at CMP process
  • TMAH, KOH, NH4OH, etc monitoring at dilution process
  • HF+H2SiF6, HF+HNO3, etc. monitoring at cleaning process
  • TMAH+Resist, KOH+Si, etc monitoring at etching process





Specifications

      Name      FUD-1 Model-130
Measurement parametersUltrasonic velocity and temperature

      Display      LCD (concentration, temperature, velocity/various parameters)


      Output
      Analog / DC4 - 20mA (adjustable depend on a concentration figure)?
Digital / RS232C (concentration, temperature, velocity, error code)
?Alarm / high, low, error

      Power      AC100-240V 50/60Hz, 30VA / DC24V

      Transmitter      Panel mount type (DIN Standard)


      Functions
      Output setting, Alarm-output setting, Average times setting,
Offset and Gain setting, Self-diagnosis-check,
Fail Safe Mode, Auto Error Canceller Mode

      Option      RS485 Output (Alternative choice with RS232C.)
Temp. Output (DC4 - 20mA)


      Channel      max. 10ch.


      Cable
      6m

      Sensor material
            PFA coating

      Fitting connector
      1/2 to 1 inch various brands


      Environment
      Transmitter
      10 – 40 degree C RH less than 85%


 Transducer 5 – 45 degree C
 Fluid temp. 0 – 50 degree C
 Pressure 0.3MPa or less
             Flow rate
      5 lpm or less




      Name      FUD-1 Model-530
Measurement parametersUltrasonic velocity, conductivity and temperature

      Display      LCD (concentration 1 & 2, temperature, velocity, conductivity/various parameters)


      Output
      Analog / DC4 - 20mA : 2 lines (adjustable depend on a concentration figure)?
Digital / RS232C (concentration 1 & 2, temperature, velocity, conductivity, error code)
?Alarm / high, low, error 2 lines

      Power      AC100-240V 50/60Hz, 30VA / DC24A

      Transmitter      Panel mount type (DIN Standard)


      Functions
      Output setting, Alarm-output setting, Average times setting,?
Offset and Gain setting, Self-diagnosis-check,?Fail Safe Mode,
Auto Error Canceller Mode

      Option      RS485 Output (Alternative choice with RS232C.)?
Temp. Output (DC4 - 20mA)


      Channel      max. 7ch.


      Cable
      6m

      Sensor material
            PFA coating


      Fitting connector
      1/2 to 1 inch various brands


      Environment
      Transmitter
      10 – 40 degree C RH less than 85%


 Transducer 5 – 45 degree C
 Fluid temp. 0 – 50 degree C
 Pressure 0.3MPa or less
             Flow rate
      5 lpm or less
